Polypropylene and polyethylene are semi-crystalline: as the melt cools, the chains fold into ordered crystals. How fast those crystals form, and how big they grow, decides the stiffness, clarity, heat resistance, and cycle time of the finished part. A nucleating agent is the additive that takes control of that process. This guide explains what a nucleating agent is, how it works, the four main types, typical dosage, and how to pick the right grade for packaging, automotive, pipe, and nylon applications.
Nucleating Agent Definition
Nucleating agents are used at very low loadings — typically 0.05–0.3% for polyolefins — which makes them one of the most cost-effective additives in compounding. Clarifying agents, the sub-group that makes polypropylene transparent, are a special class of nucleator. The underlying science of nucleation is the same in all cases: lower the energy barrier for the first stable crystal to form.
Why Semi-Crystalline Polymers Need a Nucleating Agent

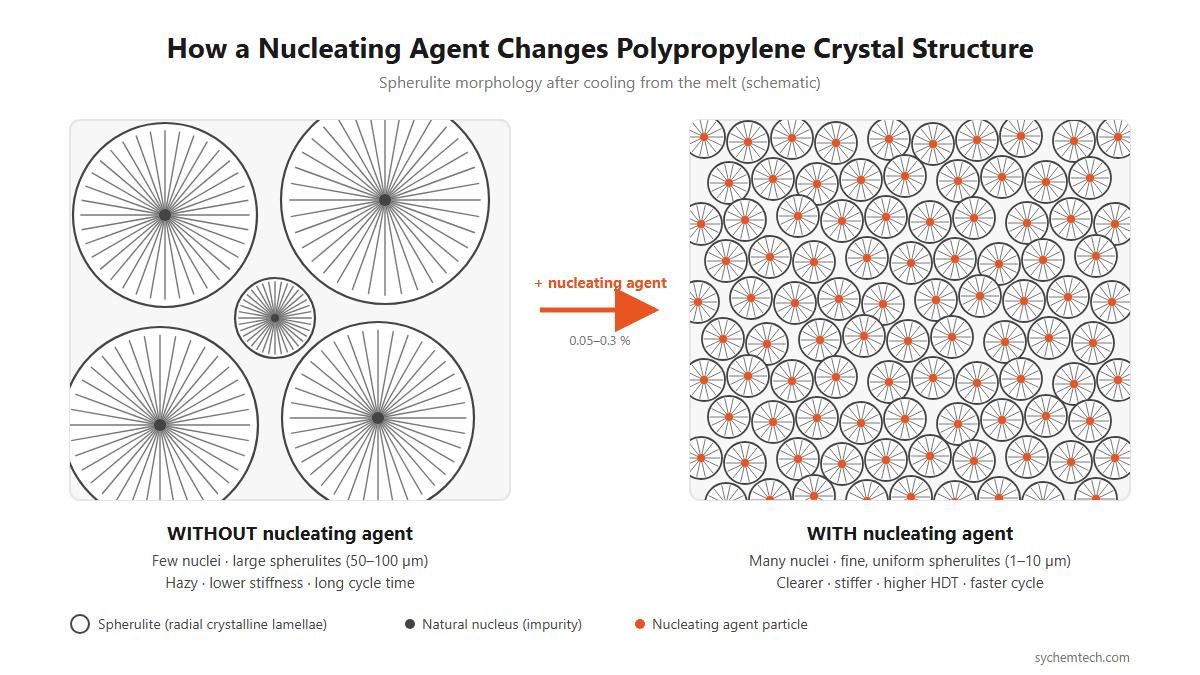

Without an additive, polypropylene relies on random impurities and catalyst residues to start crystallization. There are few of them, so crystallization begins late (around 110–115 °C for homopolymer PP) and each nucleus grows into a large spherulite, often 50–100 µm across. That structure causes three practical problems:
- Haze. Large spherulites are bigger than the wavelength of visible light and scatter it, so the part looks milky.
- Long cycle time. The part has to stay in the mold until enough crystallinity develops for it to be ejected without warping.
- Moderate stiffness and heat resistance. A coarse crystal structure gives lower flexural modulus and HDT, and more anisotropic shrinkage.
How a Nucleating Agent Works
Crystallization happens in two steps: nucleation (a stable crystal seed forms) and growth (chains add to that seed). In an unnucleated melt, nucleation is the slow, rate-limiting step. The additive removes that bottleneck by providing ready-made surfaces on which polymer chains can align. Two mechanisms are at work:
1. Heterogeneous nucleation on particle surfaces
Organic salts such as substituted aryl phosphates and organic carboxylates are finely dispersed, insoluble particles. Their crystal surfaces match the lattice of polypropylene closely (epitaxy), so PP chains deposit on them readily. Each particle becomes the center of a spherulite.
2. Self-assembled nanofibrillar networks (clarifiers)
Sorbitol-based clarifiers work differently. They dissolve in the PP melt at processing temperature and, as the melt cools, self-assemble into an extremely fine three-dimensional network of nanofibrils. The surface area is enormous, so the spherulites that form are smaller than the wavelength of light — and the part becomes transparent.

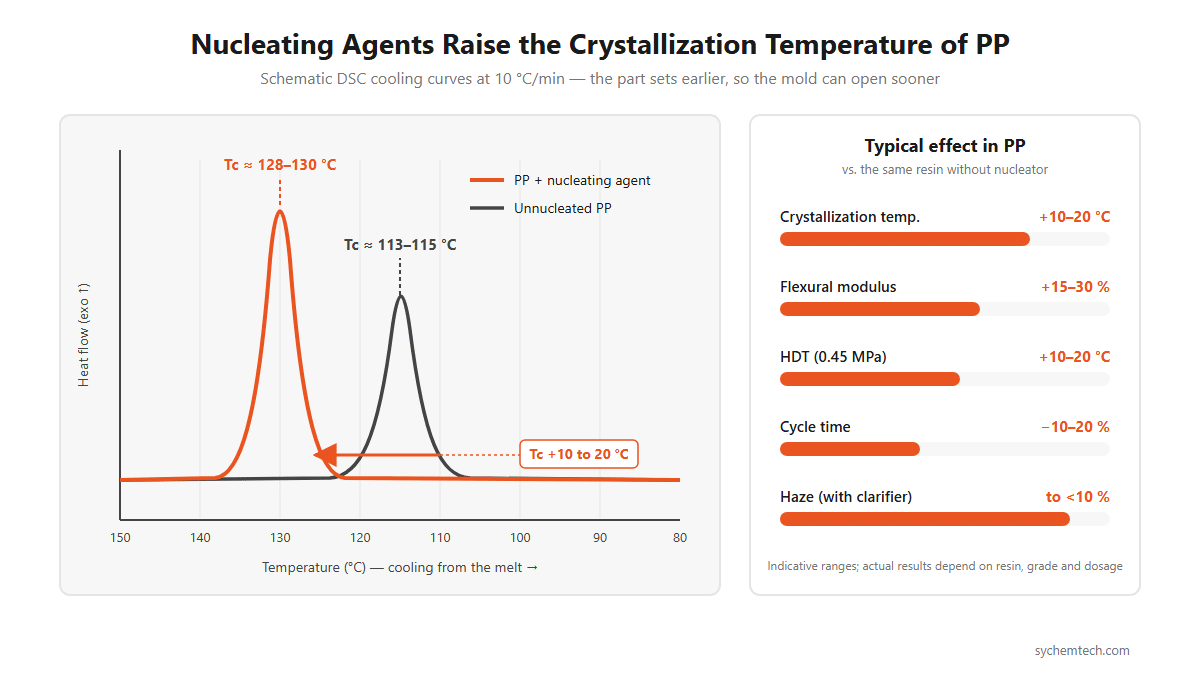

Either way, the measurable effect is the same: the crystallization temperature (Tc) rises by 10–20 °C, crystallization finishes sooner, and the crystal structure becomes finer and more uniform. A higher Tc means the part solidifies earlier in the mold, which is where the cycle-time saving comes from.
Types of Nucleating Agents
Nucleators are grouped by the property they are designed to improve. Choosing the right family matters more than choosing the right dosage.
| Type | Typical chemistry | Main benefit | Typical applications | Typical dosage |
|---|---|---|---|---|
| Clarifying (α-type) | Third-generation sorbitol derivatives | Transparency, low haze, gloss | Food containers, cups, housewares, medical syringes, clear caps | 0.15–0.25% |
| Stiffening (α-type) | Substituted aryl phosphate salts, organic salts | Flexural modulus, HDT, faster cycle | Automotive parts, thin-wall packaging, appliance housings, crates | 0.05–0.2% |
| Toughening (β-type) | Organometallic salts, aryl amides | Impact strength, ductility, HDT | PP-R and PP-H pipe, thick sheet, heavy injection parts | 0.03–0.1% |
| PE nucleating agent | Specialty organic salts | Film clarity, shorter cycle, less warpage | LLDPE film, HDPE closures and molded parts | 0.05–0.15% |
| Polyamide nucleating agent | Organic / inorganic nucleators | Higher Tc, faster cycle, easier release | PA6 and PA66 injection parts, connectors, cable ties | 0.1–0.5% |
The α and β labels refer to the crystal form polypropylene adopts. The α-form is monoclinic and gives stiffness; the β-form is hexagonal and gives a less brittle structure with much higher notched impact. Only a specific nucleator will push PP into the β-form, which is why β-nucleators are sold as a separate category.
Applications — With Typical Results
Transparent PP packaging
A random-copolymer PP with around 0.2% of a third-generation sorbitol clarifier can reach haze values below 10% on a 1 mm plaque, close to the look of polystyrene or PET but with PP’s chemical resistance and hot-fill capability. Our NA-98 clarifier is food-contact compliant and odorless, which is essential for food containers and cups; the granulated NA-98G variant makes dosing easier and dust-free.
Thin-wall injection molding and fast cycles
In homopolymer PP for yogurt cups, lids, and caps, 0.1% of an aryl phosphate nucleator such as NAP-62 raises Tc by about 15 °C. Cycle-time reductions of 10–20% are typical, which on a multi-cavity mold is a direct capacity increase with no capital spend.
Automotive and appliance parts
Talc-filled and unfilled PP bumpers, instrument panel carriers, and washing machine parts use stiffening nucleators to raise flexural modulus by 15–30% and HDT by 10–20 °C. This lets designers thin the wall or replace a more expensive engineering plastic. Good dimensional stability also reduces warpage on large flat parts.
PP pipe and thick sheet
β-nucleated PP is the standard for PP-R hot-water pipe, PP-H chemical pipe, and thick extruded sheet. A β-content above 80% can multiply notched impact strength several times over the α-form, while HDT also rises. NAB-82 is our organometallic β-nucleator for these applications, with good thermal stability and no color shift.
Polyethylene film and molding
For LLDPE blown and cast film, a PE nucleator such as NAE-23 improves clarity and gloss and reduces molding cycle time in rotomolding and injection parts.
Nylon parts
PA6 crystallizes slowly and tends to stick in the mold. A polyamide nucleator such as CHB-3C raises the crystallization temperature, shortens cycle time, and improves mold release on connectors, cable ties, and glass-fiber PA housings.
How to Select the Right Nucleating Agent
- Which polymer? PP has the widest choice. PE and PA each need a dedicated grade — a PP clarifier will not clarify polyethylene.
- Which property matters most? Clarity → sorbitol clarifier. Stiffness and cycle time → aryl phosphate or organic salt. Impact and pipe performance → β-nucleator. You rarely get the maximum of all three from one grade.
- What is the processing temperature? Sorbitol clarifiers must fully dissolve, so melt temperature should be above about 220 °C. Organic salt nucleators are thermally stable and less sensitive to processing temperature.
- Food contact or odor limits? For food packaging, specify a grade with documented food-contact compliance and low odor.
- Interaction with other additives. Calcium stearate and some pigments can deactivate or compete with nucleators. Test the full formulation, not the nucleator alone, and consider a hydrotalcite acid scavenger when using phosphate nucleators.
Nucleators work well together with a sound stabilization package; see our antioxidants and HALS range for the complete additive system.
Frequently Asked Questions
How much nucleating agent should I add?
For polypropylene, 0.05–0.2% for stiffening nucleators, 0.15–0.25% for clarifiers, and 0.03–0.1% for β-nucleators. Nylon typically needs 0.1–0.5%. Above the saturation point, extra nucleator adds cost without improving properties.
What is the difference between a nucleating agent and a clarifying agent?
All clarifiers are nucleators, but not every nucleator clarifies. A clarifier produces spherulites small enough not to scatter light. A standard nucleator produces fine crystals that raise stiffness and speed up the cycle, but the part may still be translucent.
What is the difference between α and β nucleators?
α-nucleators promote the monoclinic crystal form of PP, giving higher stiffness and HDT. β-nucleators promote the hexagonal form, giving much higher impact strength and ductility. Pipe and sheet use β; packaging and automotive stiffness applications use α.
Does nucleation reduce cycle time?
Yes. By raising the crystallization temperature, the part solidifies earlier during cooling. A 10–20% reduction in cycle time is common in thin-wall PP molding.
Can I nucleate recycled PP?
Yes, and it is often more effective than in virgin resin, because recycled PP tends to have lower stiffness and variable crystallization. Stiffening nucleators help bring recycled blends back toward virgin-grade performance.
Does nucleation affect shrinkage and warpage?
It changes shrinkage because crystallinity increases. Well-dispersed nucleators usually make shrinkage more uniform, which reduces warpage on flat parts. Always re-validate mold dimensions when adding a nucleator to an existing part.
Conclusion
A nucleating agent is a low-dose, high-impact additive. By seeding crystallization at a higher temperature, it gives semi-crystalline polymers finer crystal structure, which means clearer packaging, stiffer and more heat-resistant parts, tougher pipes, and shorter cycle times. Start by defining the property you need most — clarity, stiffness, or toughness — then pick the family, and fine-tune the dosage with a short trial.
SYCHEM TECH supplies clarifying, stiffening, β-type, PE, and polyamide nucleators and, as your formulation development partner, can recommend a starting grade and dosage for your resin and process. Browse the full nucleating agent product range or our wider processing additives line.
