Die drool on a cable line, scratches on a car door panel, squeaking between two interior trim parts, worn-out shoe soles — these look like four unrelated problems, but they share one root cause: friction. Silicone masterbatch is the additive compounders reach for when they need to reduce friction, both inside the extruder and on the surface of the finished part. This guide explains what it is, how it works, how it differs from silicone oil and wax lubricants, what dosage to use, and how to choose the right carrier resin for your application.
Silicone Masterbatch Definition
The active ingredient is polydimethylsiloxane (PDMS), the same backbone found in all silicone polymers. What makes the masterbatch form different is molecular weight: the siloxane used is a gum with a molecular weight in the hundreds of thousands, not a low-viscosity oil. That single difference is why it stays in the part instead of migrating to the surface and wiping off.
Why Plastics Need a Silicone Additive
Polymer melts are sticky and viscous. During extrusion and molding they rub against barrel, screw, and die surfaces, and against themselves. Finished parts then rub against fingernails, other parts, and the ground. The consequences are familiar to every processor:
- High torque and pressure in the extruder, limiting line speed and raising energy consumption.
- Die drool — material building up at the die exit, which breaks off as specks and stops the line for cleaning, especially with highly filled flame-retardant cable compounds.
- Poor filler dispersion in color and additive masterbatches and in compounds loaded with 50–65% mineral flame retardant.
- Visible scratches on textured automotive interiors and appliance housings made of talc-filled PP.
- Squeak and rattle where two plastic parts slide against each other.
- Wear on gears, bearings, sliding parts, and shoe outsoles.
Traditional lubricants — metal stearates, amide waxes, low molecular weight silicone oil — help with processing but tend to migrate to the surface, cause blooming or a greasy feel, interfere with printing and painting, and lose their effect over time. Ultra-high molecular weight siloxane solves that durability problem.

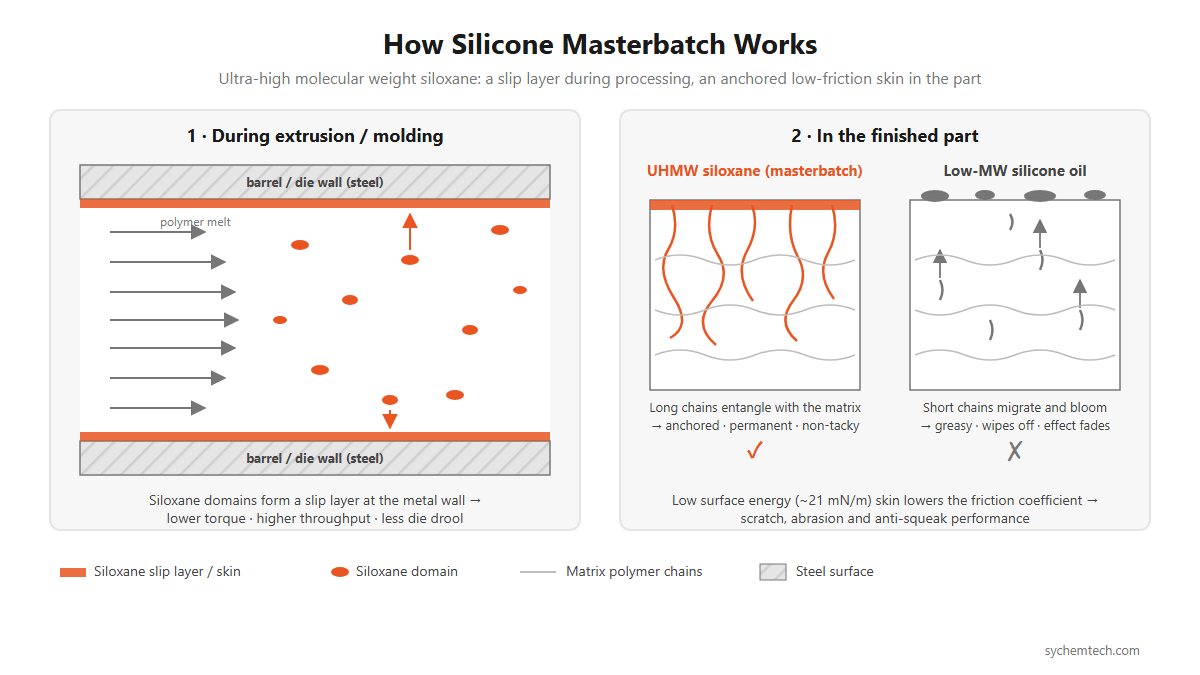

How Silicone Masterbatch Works
PDMS has very low surface energy (around 20–21 mN/m, compared with roughly 30 mN/m for polyethylene) and is incompatible with most thermoplastics. When it is dispersed into the melt, it does not dissolve; it forms fine domains that behave in two ways.
1. Internal and external lubrication during processing
Because it is incompatible with the matrix, part of the siloxane moves toward the boundary between the melt and the metal surfaces of the barrel and die. There it forms a thin slip layer that lowers wall shear stress. The practical results are lower extruder torque and melt pressure, higher output at the same screw speed, less die drool, and easier mold filling and release. At the same time, siloxane domains wet filler particles and help them disperse.
2. Permanent surface modification in the finished part
As the part cools, siloxane concentrates in the outer skin layer and lowers the surface coefficient of friction. Because each chain is very long and partly entangled with the matrix polymer, it is anchored. It cannot travel freely to the surface the way silicone oil does, so the effect does not wipe off, does not cause tackiness after heat aging, and lasts for the life of the part. A fingernail or a mating part slides across the surface instead of digging in — which is the mechanism behind scratch resistance, abrasion resistance, and anti-squeak performance.
Silicone Masterbatch vs. Other Lubricants
| Additive | Main role | Durability of surface effect | Blooming / tack risk | Effect on printing and painting |
|---|---|---|---|---|
| UHMW silicone masterbatch | Processing aid plus permanent slip, scratch and abrasion resistance | Permanent | Very low | Low at processing-aid dosage; test at higher dosage |
| Low-MW silicone oil | Mold release, short-term slip | Short — wipes off | High | Poor adhesion |
| Amide waxes (erucamide, oleamide) | Film slip and anti-block | Medium — migrates over days | Medium | Can interfere |
| EBS wax | Internal/external lubricant, dispersant | Low | Medium at high dosage | Minor |
| Fluoropolymer PPA | Eliminates melt fracture and die build-up in polyolefin extrusion | Not a surface modifier | None | None |
These additives are often combined rather than substituted. A typical HFFR cable formulation might use silicone for flow, dispersion and surface finish, while a blown film line might use PPA against melt fracture and an amide for slip.

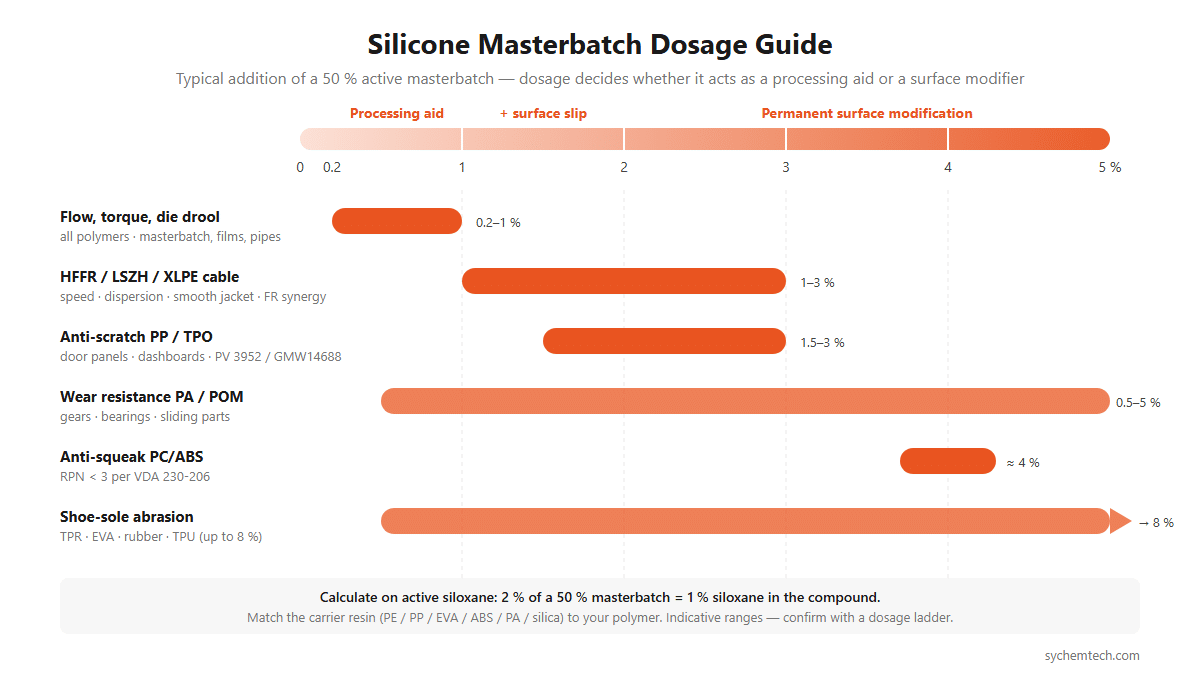

Dosage: One Additive, Two Jobs
The most useful way to think about silicone masterbatch is that dosage decides what it does:
- 0.2–1% (50% masterbatch): processing aid. Better flow, lower torque, less die drool, better filler dispersion, easier demolding. Surface properties change only slightly.
- 1–2%: processing plus noticeable surface slip and a smoother, silkier hand feel.
- 2–5%: surface modification. Lower coefficient of friction, scratch resistance on automotive interiors, wear resistance on engineering plastic parts and shoe soles.
Always calculate on active siloxane content. A 50% masterbatch at 2% delivers 1% siloxane; a 25% grade at the same addition delivers half as much.
Applications
Wire and cable
Halogen-free flame-retardant (HFFR) and low-smoke zero-halogen (LSZH) compounds carry 55–65% magnesium hydroxide or ATH, which makes them hard to extrude. Adding 1–3% silicone masterbatch lowers torque, raises line speed, reduces die drool, gives a smooth glossy jacket, and improves dispersion of the flame retardant. Siloxane also has a synergistic flame-retardant effect: it helps form a stable char and reduces peak heat release and smoke. Silane-crosslinked XLPE and TPE/TPU cables, including EV charging cables, use it in the same way.
Automotive interiors and appliances
Talc-filled PP and TPO door panels, dashboards and consoles must pass scratch tests such as Volkswagen PV 3952 and GM GMW14688, where the color change after a five-finger scratch is typically required to stay below ΔL 1.5. A PP-carrier anti-scratch grade at 1.5–3% is the standard solution, and low-VOC, non-tacky grades keep the compound within interior emission and fogging limits. The same approach protects appliance covers and furniture parts.
Anti-squeak for PC/ABS
Interior trim, instrument panels and white-goods parts made from PC/ABS can produce stick-slip noise. A specialty siloxane additive at around 4% reduces the risk priority number (RPN) to below 3 in the VDA 230-206 stick-slip test, without coatings or design changes and with minimal loss of impact strength.
Engineering plastics: gears and sliding parts
In PA and POM gears, bearings and sliding components, 0.5–5% of a silicone grade with a matching carrier lowers the friction coefficient and improves wear resistance and mold release, without the mechanical-property penalty of PTFE fillers at comparable loadings.
Footwear
For TPR, EVA, rubber and TPU shoe outsoles, 0.5–8% of an anti-abrasion silicone grade cuts DIN abrasion loss significantly without changing hardness or color.
Color and filler masterbatch, pipes, film, and WPC
Silicone improves pigment and filler dispersion in masterbatch production, lowers friction in telecom duct (silicore pipe) inner layers, and helps wood-plastic composite profiles extrude faster with a smoother surface. Powder grades on a silica carrier are used where a pellet carrier would not be compatible.
How to Select the Right Grade
- Match the carrier to your polymer. PE carrier for PE, EVA and many cable compounds; PP carrier for PP and TPO; ABS or SAN carrier for ABS and PC/ABS; PA carrier for nylon. A mismatched carrier can cause delamination and poor dispersion.
- Define the job. Processing improvement only, or a permanent surface property? This sets the dosage window.
- Check active content. Compare grades on siloxane delivered, not on masterbatch percentage.
- Check downstream steps. If the part will be painted, printed or bonded, run adhesion tests at your dosage.
- Check regulatory needs. Automotive interiors need low-VOC grades; food-contact applications need documented compliance.
Frequently Asked Questions
How much silicone masterbatch should I add?
For processing improvement, 0.2–1% of a 50% masterbatch. For surface slip, scratch and abrasion resistance, 2–5%. Shoe soles may use up to 8%. Start low and run a short dosage ladder.
Will it bloom or make the surface greasy?
Not at normal dosage. Ultra-high molecular weight siloxane is anchored in the polymer and does not migrate the way low molecular weight silicone oil does. Correctly dosed parts stay non-tacky after heat aging.
Does it affect mechanical properties?
At processing-aid levels the effect is negligible. At 3–5%, a small drop in tensile strength or modulus is possible, so test critical parts. Grades designed for engineering plastics are formulated to minimize this.
Can parts containing silicone be painted or printed?
Usually yes at low dosage. At higher dosage, surface energy falls and paint or ink adhesion may suffer. Run an adhesion test, and consider flame or plasma treatment if needed.
What is the difference between silicone masterbatch and silicone powder?
The masterbatch is pre-dispersed in a resin carrier, which gives the best dispersion when the carrier matches your polymer. The powder form uses an inorganic silica carrier, which suits engineering plastics, color masterbatch, and systems where no pellet carrier is compatible.
Does silicone help flame retardancy?
In HFFR cable compounds, yes. It contributes to a more stable char layer and lowers heat release and smoke, alongside its processing benefits. It is a synergist, not a flame retardant on its own.
Conclusion
Silicone masterbatch is one of the most versatile additives in plastics processing. At low dosage it makes compounds run faster and cleaner; at higher dosage it gives finished parts a durable low-friction surface that resists scratches, wear and squeaking. The keys to success are matching the carrier resin to your polymer, choosing the dosage window for the job you need, and comparing grades on active siloxane content.
